Paper & Pulp Spray Nozzles Manufacturer

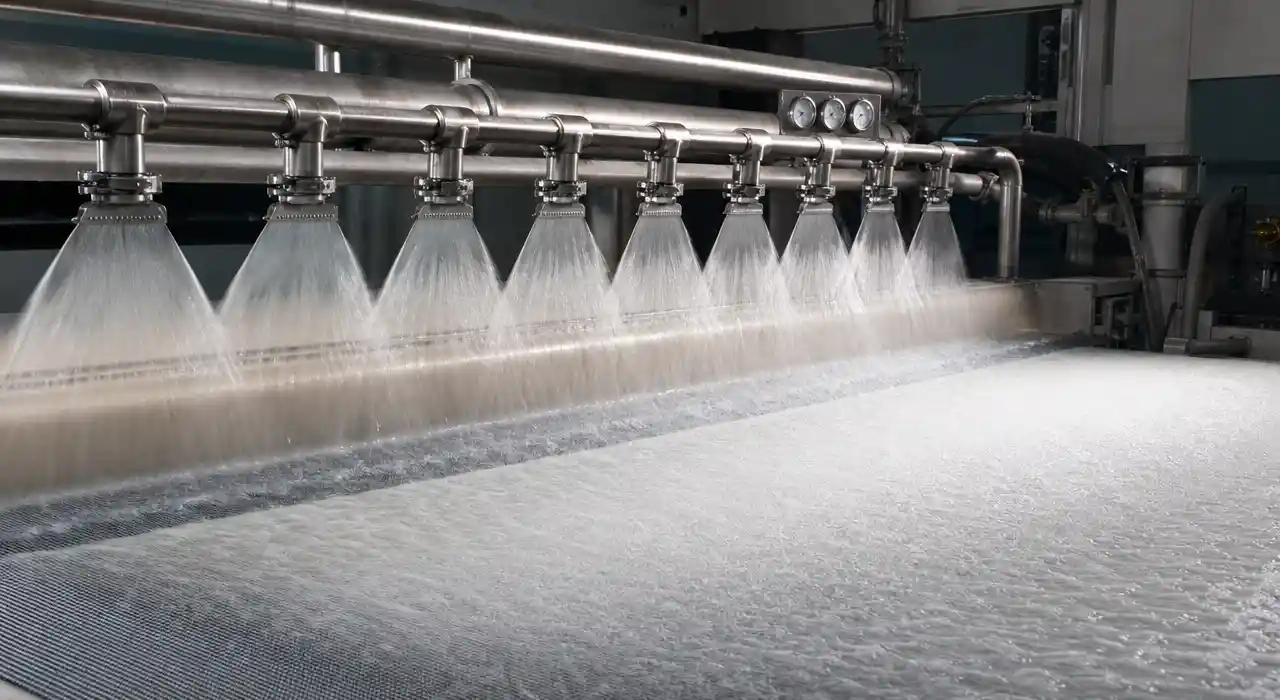

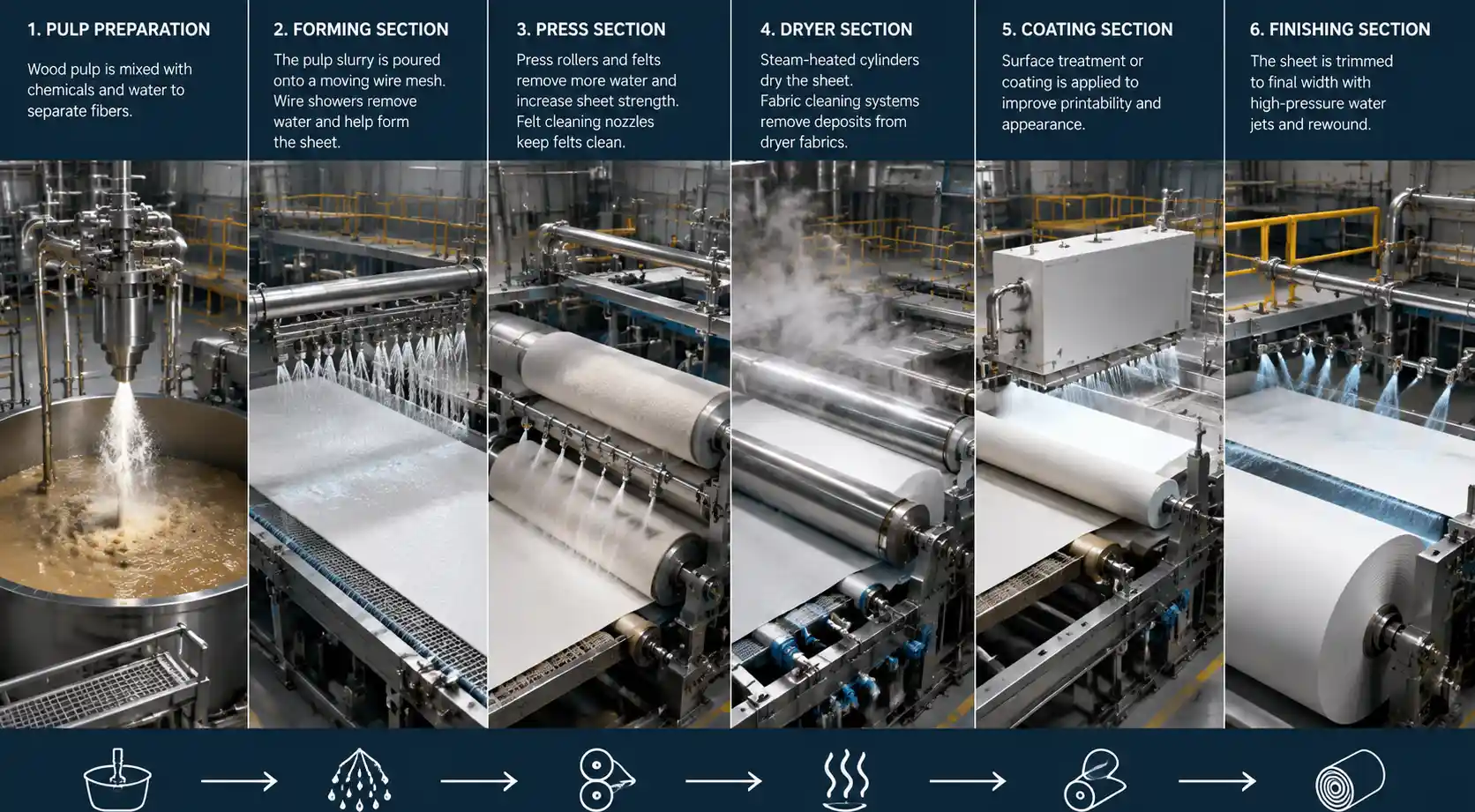

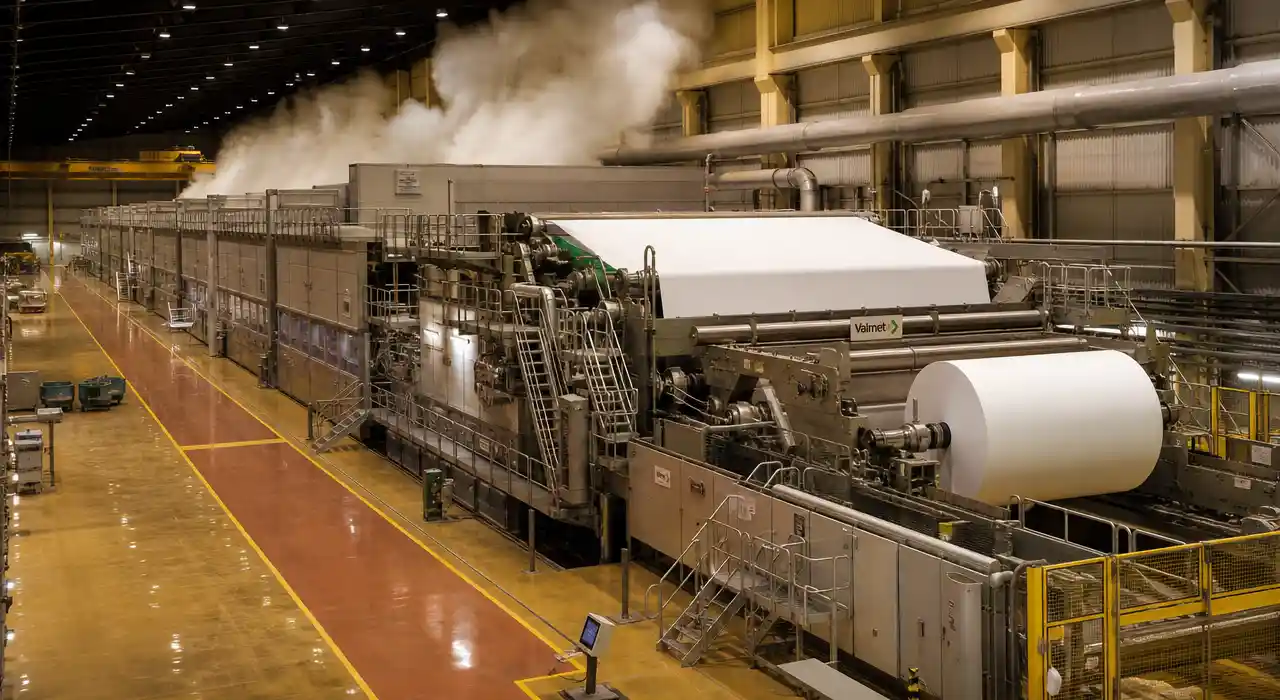

Paper mills use specialized nozzles across multiple machine sections. Press section felt showers require high-pressure flat fan nozzles at 80-150 bar removing pitch, stickies, and fiber deposits with ceramic or tungsten carbide orifices resisting abrasive wear. Forming section wire showers employ medium-pressure flat fan nozzles (20-60 bar) cleaning forming fabrics with wide spray angles (40-110°) providing full wire coverage. Dryer section fabric cleaning uses similar designs operating at lower pressures. Web humidification requires fine atomizing nozzles producing 20-100 micron droplets for rapid moisture absorption. Coating application employs air atomizing nozzles delivering controlled coat weights of 2-15 g/m² with precision flow control. Chemical spray systems use full cone nozzles distributing retention aids, sizing, and strength additives uniformly into stock. Edge sprays require narrow-angle flat fan patterns. Materials include 303/316 stainless steel for general service, ceramic inserts for abrasion resistance, and Hastelloy for acidic bleach plant applications. Flow rates range from 5-100 L/min per nozzle depending on application.

Yes, we manufacture high-pressure felt cleaning spray nozzles engineered for press section shower systems. Our felt cleaning nozzles operate at pressures from 80-150 bar delivering concentrated impact force removing stubborn deposits of pitch, stickies, coating binder, and fiber that low-pressure showers cannot eliminate. Flat fan spray patterns with angles from 15-65° provide optimal coverage across felt width while concentrating cleaning energy. Ceramic or tungsten carbide orifice inserts resist abrasive wear from suspended solids in process water extending service life from 3-6 months (stainless steel) to 12-36 months. Quick-disconnect mounting enables rapid replacement during machine breaks without tools minimizing production interruptions. We provide complete shower headers with manifold piping, mounting brackets, and pressure control systems. Oscillating spray systems option sweeps patterns across felt improving deposit removal uniformity. Engineering services include shower positioning analysis optimizing impact angle and coverage, hydraulic calculations for pump and piping sizing, and runnability consultation addressing felt contamination issues. Typical installations reduce manual felt cleaning from weekly to monthly while extending felt life 20-30% through improved cleanliness.

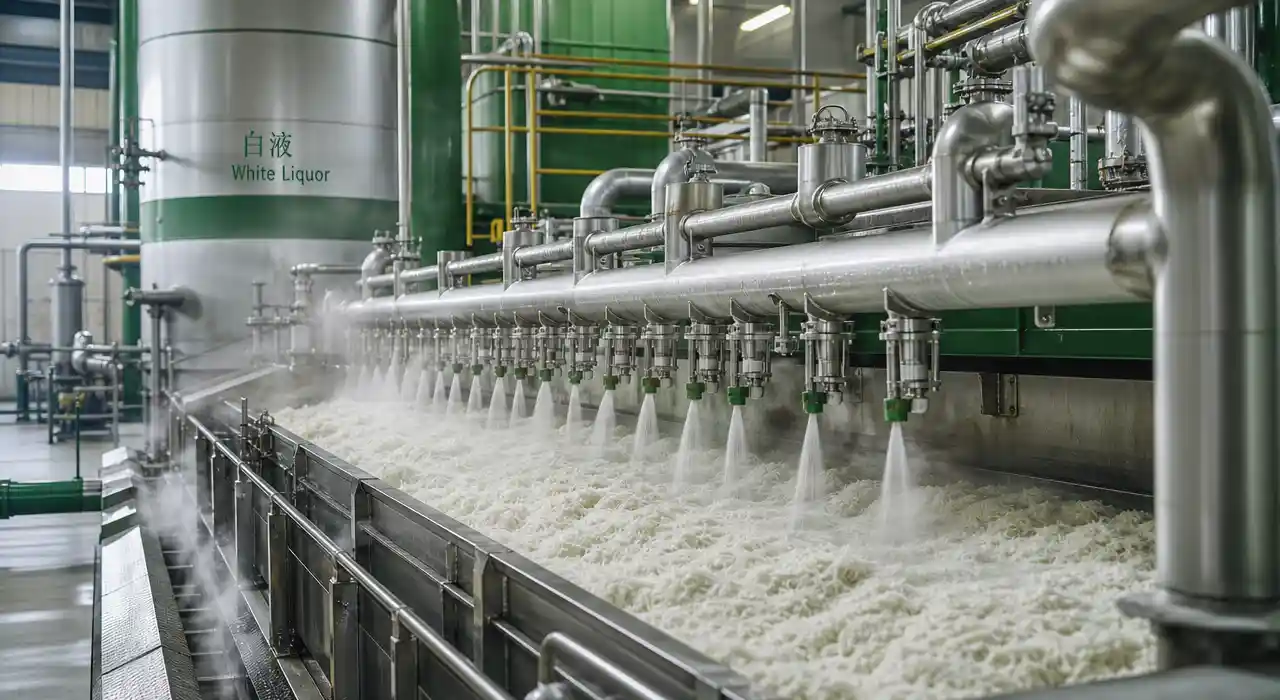

Web moisture profile control requires precision humidification spray nozzles creating fine droplets that absorb rapidly without over-wetting. Air atomizing nozzles using compressed air (3-6 bar) produce 20-80 micron mist penetrating paper surfaces achieving target moisture of 6-9% before calendering. Internal mix designs provide consistent atomization independent of liquid pressure variations. Modular spray arrays with individual zone control (typically 8-32 zones across machine width) enable profile correction compensating for cross-machine drying variations. Integration with online moisture profile scanners enables closed-loop automatic adjustment maintaining ±1-2% uniformity. Nozzle materials use 303/316 stainless steel with electropolished surfaces preventing scale buildup that affects spray patterns. Flow rates of 0.2-2 L/min per nozzle provide moisture addition matching typical requirements of 5-20 g/m². Spray mounting positions 300-600mm from paper surfaces ensuring complete evaporation before contact. We provide complete humidification systems including spray arrays, control valves, manifolds, moisture measurement integration, and PLC programming. Engineering services include moisture balance calculations, spray coverage analysis, and runnability assessment addressing curl, wrinkles, and calender breaks from moisture variations.

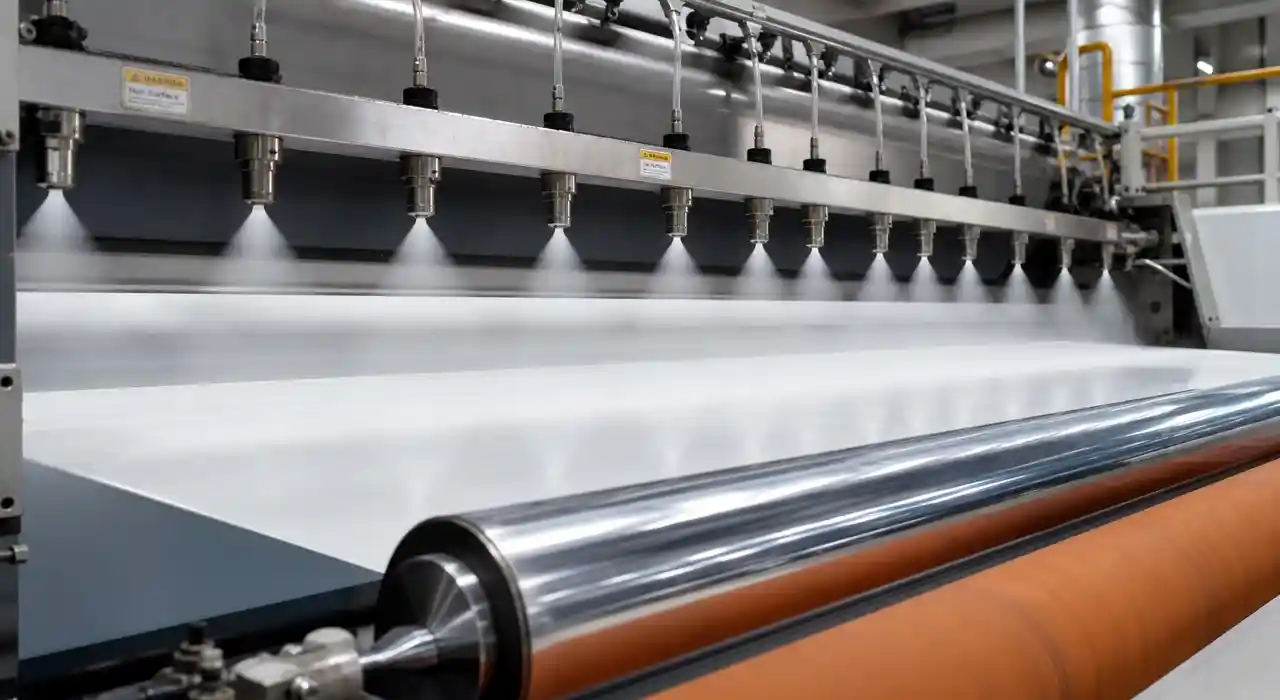

Yes, we provide replacement spray nozzles for paper machines and pulp mills of all manufacturers. Our engineering team conducts on-site assessments during machine shutdowns evaluating felt and wire cleaning effectiveness through contamination analysis and deposit sampling, measuring current shower pressures, flows, and spray patterns, documenting existing nozzle specifications and mounting arrangements, and identifying opportunities for runnability improvement or water consumption reduction. We offer direct replacements maintaining existing manifold threads and spacing while upgrading to wear-resistant ceramic inserts extending service life, optimized spray angles improving coverage uniformity, or higher pressure capability enhancing cleaning effectiveness. Felt shower upgrades typically reduce manual cleaning frequency from weekly to monthly saving 40-50 production hours annually. Web humidification system retrofits reduce moisture profile variation from ±3% to ±1% improving calender runnability and converting yields. Wire shower optimization reduces water consumption by 30-50% while maintaining or improving cleaning effectiveness. Most paper mill nozzle upgrades achieve payback within 12-30 months through extended nozzle life, reduced maintenance, improved production efficiency, and resource savings. Installation services include machine shutdown coordination, spare parts inventory recommendations, and technical training for mill maintenance personnel.

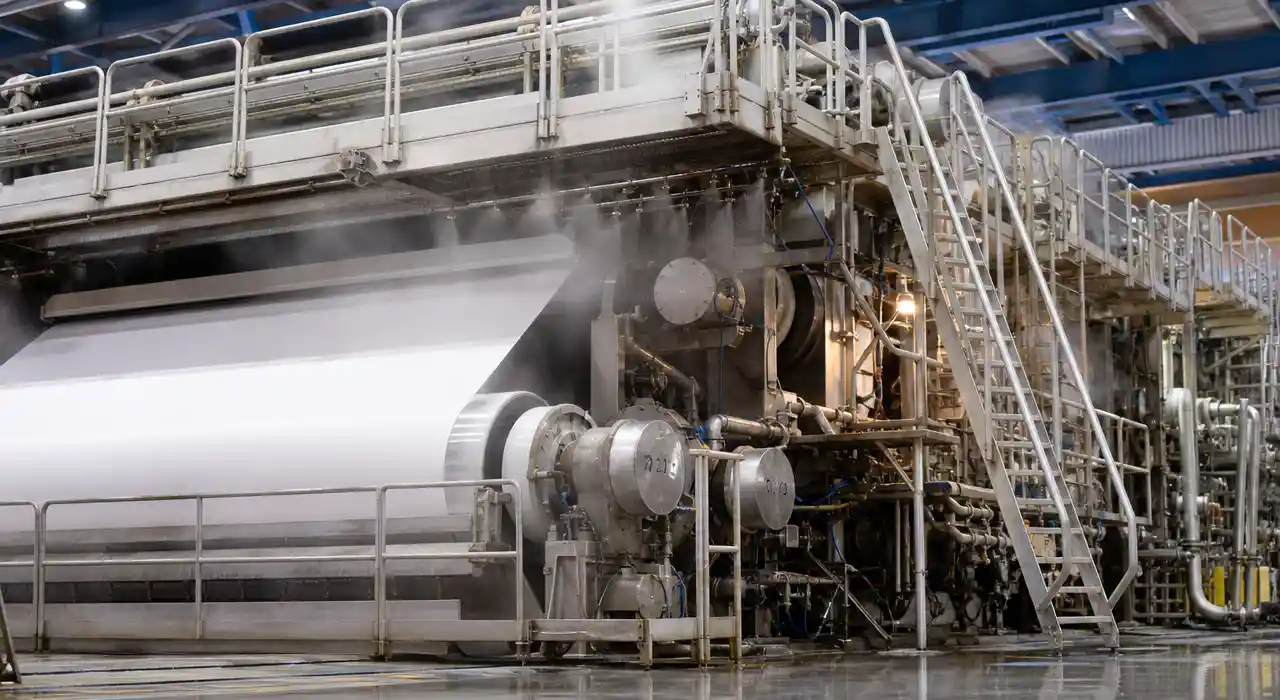

Paper mills achieve 30-50% shower water consumption reduction through system optimization. First, upgrade to high-pressure nozzles (80-120 bar versus traditional 20-40 bar) delivering concentrated cleaning force from lower flow volumes reducing water by 40-60% while improving cleaning effectiveness. Optimize spray coverage through proper nozzle selection and positioning eliminating wasteful overlap while ensuring complete felt and wire coverage. Implement automated control systems adjusting shower flows based on machine speed, felt age, and contamination levels rather than constant maximum flow. Add inline filtration removing suspended solids before showers enabling nozzle operation at design capacity without clogging. Install closed-loop recirculation systems treating and reusing shower water with filtration and temperature control. Optimize shower sequencing activating only necessary showers for current operating conditions. Replace worn nozzles preventively when flow rates increase >15% indicating orifice enlargement and spray pattern degradation. Use oscillating spray systems covering wider areas from fewer nozzles. Install flow meters monitoring individual shower headers detecting leaks and enabling water accounting. Typical daily savings of 1,000-8,000 m³ represent $75,000-600,000 annual cost reduction including water, treatment, energy, and chemicals with payback periods of 12-30 months.

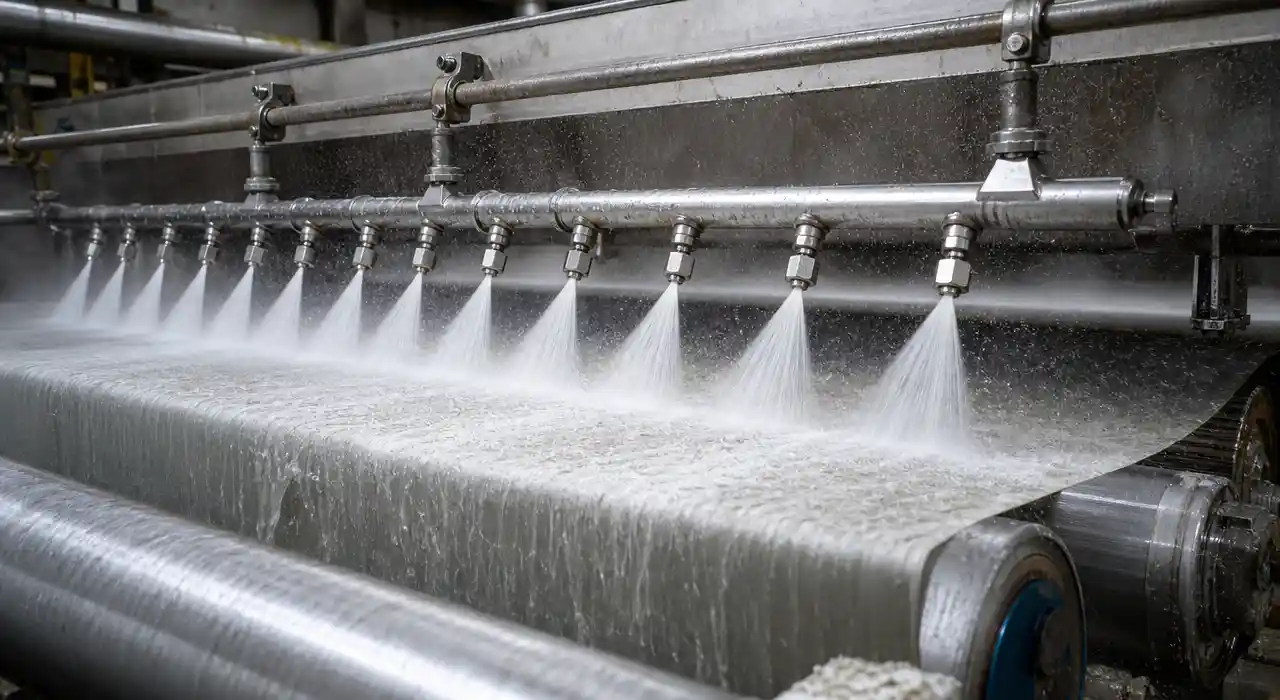

Paper mill spray nozzle maintenance varies by application and water quality. High-pressure felt cleaning nozzles require weekly visual inspection checking spray patterns during operation identifying degraded units showing fan irregularities or flow reductions, monthly flow testing measuring individual nozzle flow rates detecting wear or clogging exceeding ±15% deviation, and replacement when ceramic or carbide inserts show wear (typically 12-36 months) or stainless steel nozzles erode (3-9 months). Wire shower nozzles need monthly inspection and cleaning removing scale and fiber buildup, quarterly rotation or replacement preventing excessive wear. Coating and humidification nozzles require weekly inspection for clogging from dried material, monthly cleaning using appropriate solvents, and annual replacement preventively. All shower systems benefit from upstream filtration (40-60 mesh) capturing fiber and filler particles before nozzles. Chemical treatment including scale inhibitors prevents mineral deposition. Spare nozzle inventory should include 10-20% of installed quantity for each type enabling rapid replacement during machine breaks. Maintenance during machine shutdowns rather than running changes minimizes safety risks and enables thorough inspection. Quick-disconnect mounting enables tool-free replacement in minutes rather than threaded designs requiring wrenches.
