Electronics & PCB Spray Nozzles Manufacturer

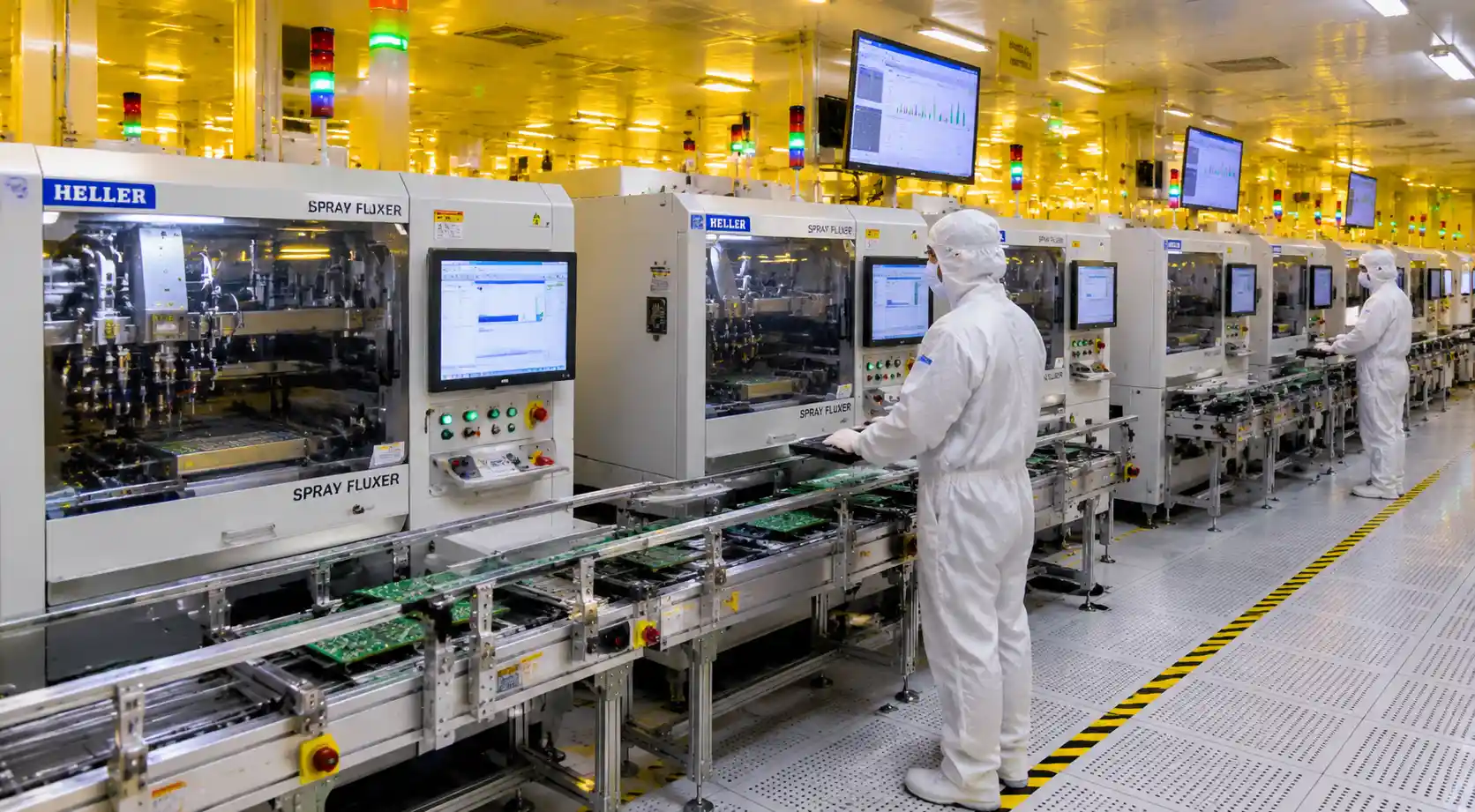

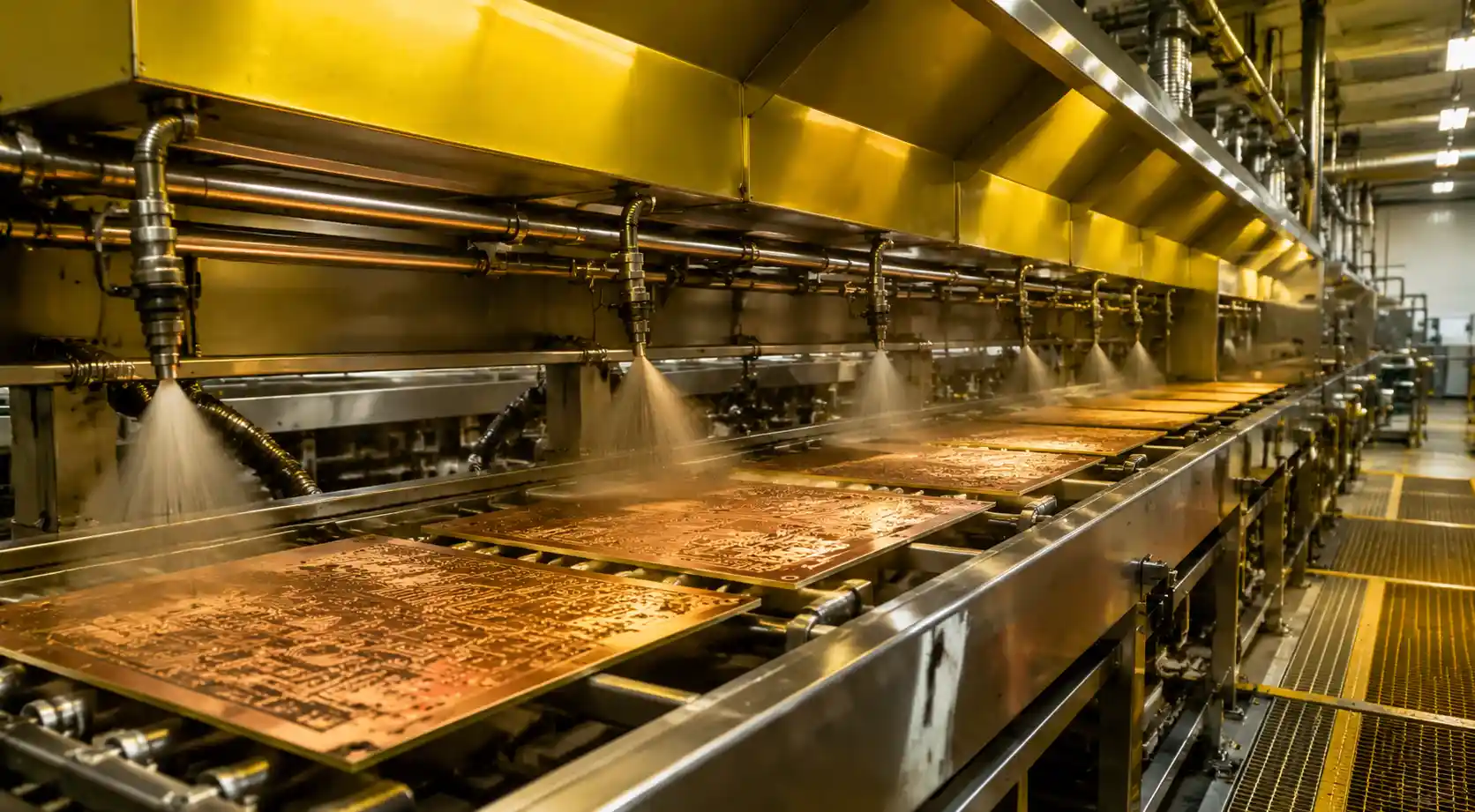

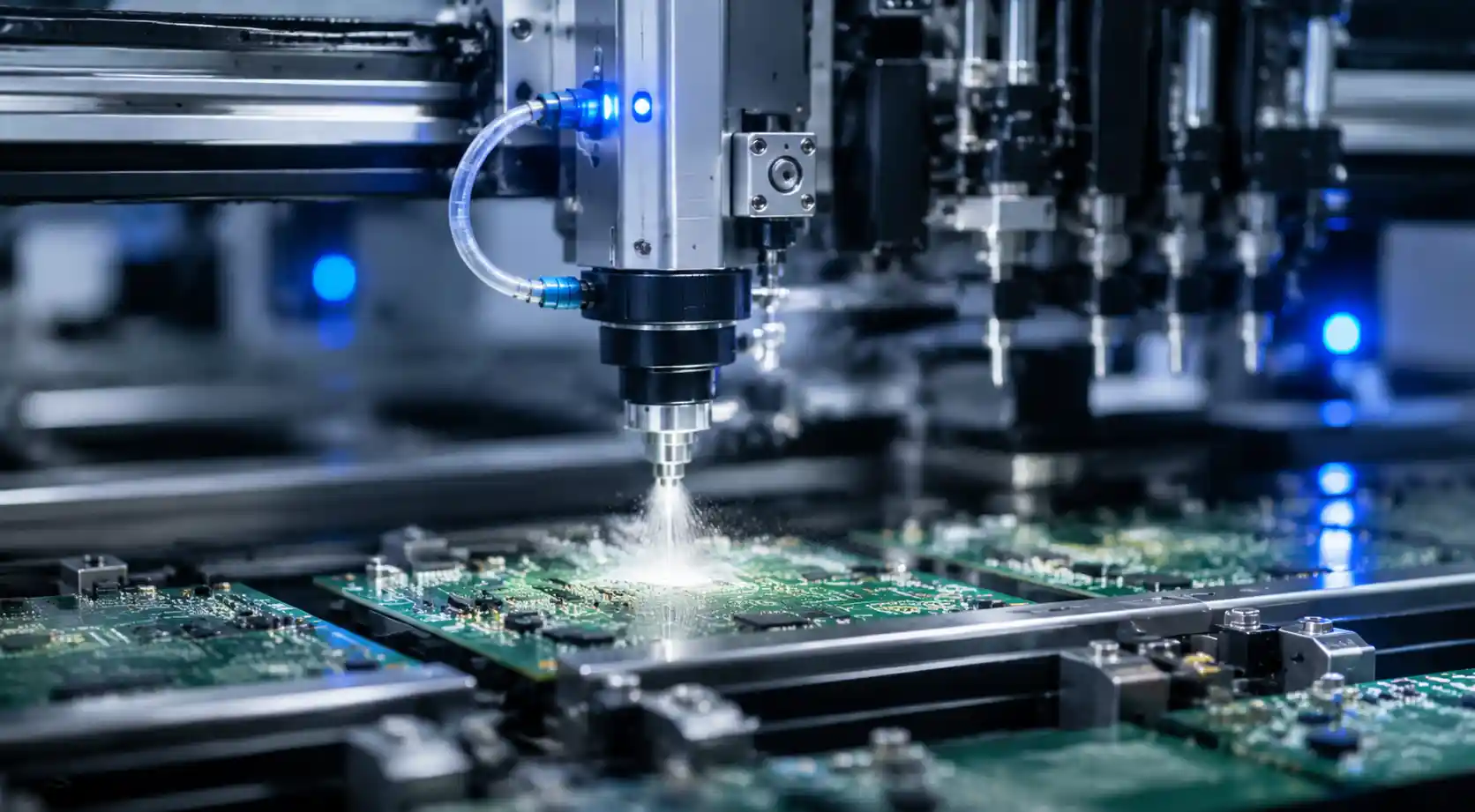

Electronics manufacturing uses specialized nozzles for contamination-sensitive applications. Conformal coating systems require air atomizing nozzles providing fine droplet sizes of 40-100 microns for uniform film thickness on PCBs with HVLP or pressure-feed configurations. PCB cleaning uses flat fan nozzles delivering high-velocity spray removing flux residues from under fine-pitch components with PVDF or 316L stainless steel construction preventing ionic contamination. Flux application employs precision air atomizing nozzles applying controlled quantities to solder pads before SMT assembly. Developer and etchant spray systems in PCB fabrication use chemically-resistant full cone nozzles for uniform coverage. Cleanroom humidification requires ultra-pure water compatible fine mist nozzles maintaining 40-60% RH for static control. All electronics nozzles must prevent particle shedding and ionic leaching meeting cleanroom and IPC standards.

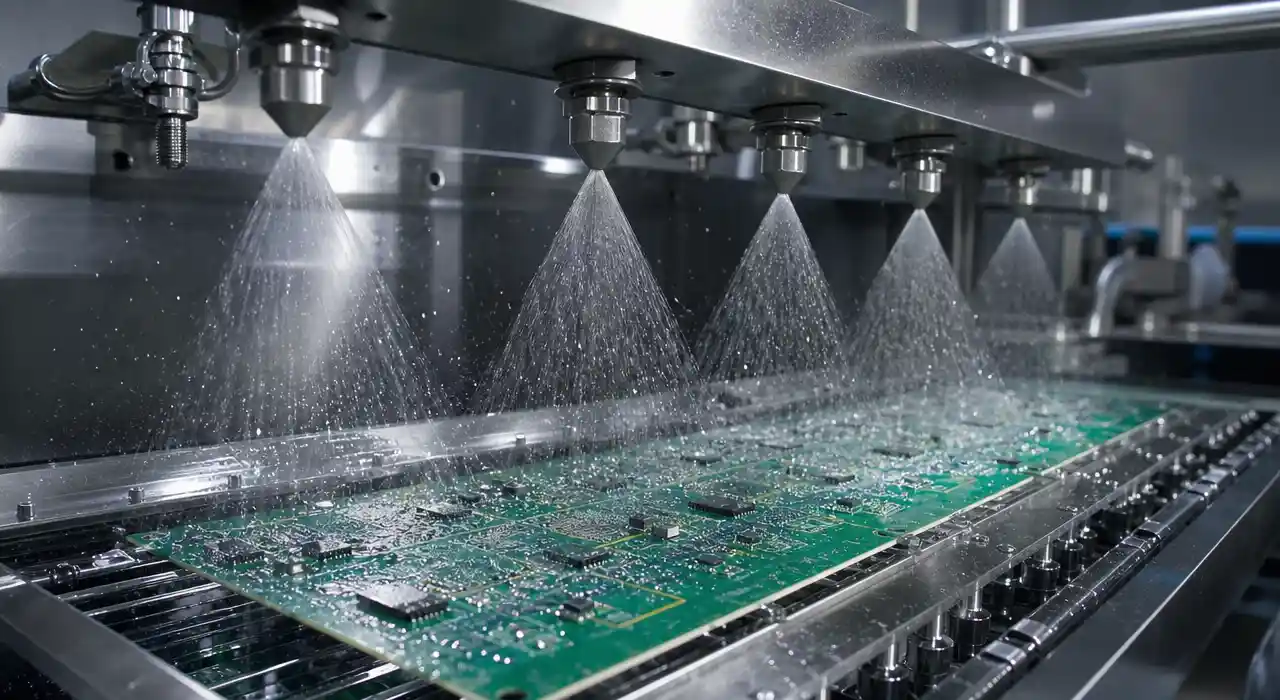

Yes, we specialize in spray nozzles engineered for ultra-pure water (UPW) systems used in electronics manufacturing. Our nozzles feature PVDF (polyvinylidene fluoride) and PFA (perfluoroalkoxy) construction materials meeting SEMI specifications for semiconductor-grade systems with ionic leaching below detection limits. Electropolished 316L stainless steel provides ultra-smooth surfaces preventing bacterial growth and particle accumulation. All wetted components undergo ultrasonic cleaning in electronic-grade solvents and nitrogen purging before cleanroom packaging. We provide material certifications documenting purity specifications, ionic contamination test reports to ASTM standards, and particulate cleanliness documentation. Our UPW nozzles maintain water resistivity above 18 MΩ·cm without ionic contamination suitable for critical cleaning, rinsing, and humidification applications in Class 100 cleanrooms. Flow testing uses 0.2 micron filtered DI water ensuring delivered spray quality meets specifications.

Electronics manufacturing chemicals require specialized nozzle materials for long service life and contamination-free operation. PVDF (polyvinylidene fluoride) offers excellent resistance to solvents including isopropyl alcohol, acetone, and specialized flux removers with ultra-low ionic leaching suitable for critical cleaning applications. PFA (perfluoroalkoxy) provides superior chemical resistance to aggressive developers, etchants, and strippers with temperature capability to 200°C and the lowest ionic contamination of any plastic. 316L stainless steel electropolished finish resists most electronics cleaning chemicals with ultra-smooth surface preventing particle traps and bacterial growth. PTFE (Teflon) delivers universal solvent resistance but limited to lower pressure applications. Standard materials NOT recommended include brass (zinc contamination), aluminum (ionic leaching), and acetal plastics (solvent incompatibility). We provide chemical compatibility charts and ionic contamination test data for all materials ensuring compliance with IPC and JEDEC cleanliness standards.

Yes, we provide direct replacement nozzles for electronics spray systems from all manufacturers. Our engineering team conducts on-site process audits evaluating cleaning effectiveness through ionic contamination testing, documenting conformal coating thickness uniformity, measuring existing nozzle specifications and performance, analyzing quality defects including coating bridges or cleaning residues, and identifying opportunities for material savings and throughput improvements. We offer drop-in replacements maintaining existing manifold connections while upgrading to superior chemical resistance, ionic purity, or spray precision. For conformal coating retrofits, we provide optimized atomization packages delivering better coverage uniformity and reduced material consumption. For cleaning systems, we design custom spray manifolds improving contamination removal while reducing DI water and solvent usage. Most electronics retrofit projects achieve payback within 6-15 months through reduced material costs, improved yields reducing rework, and faster cycle times increasing throughput.

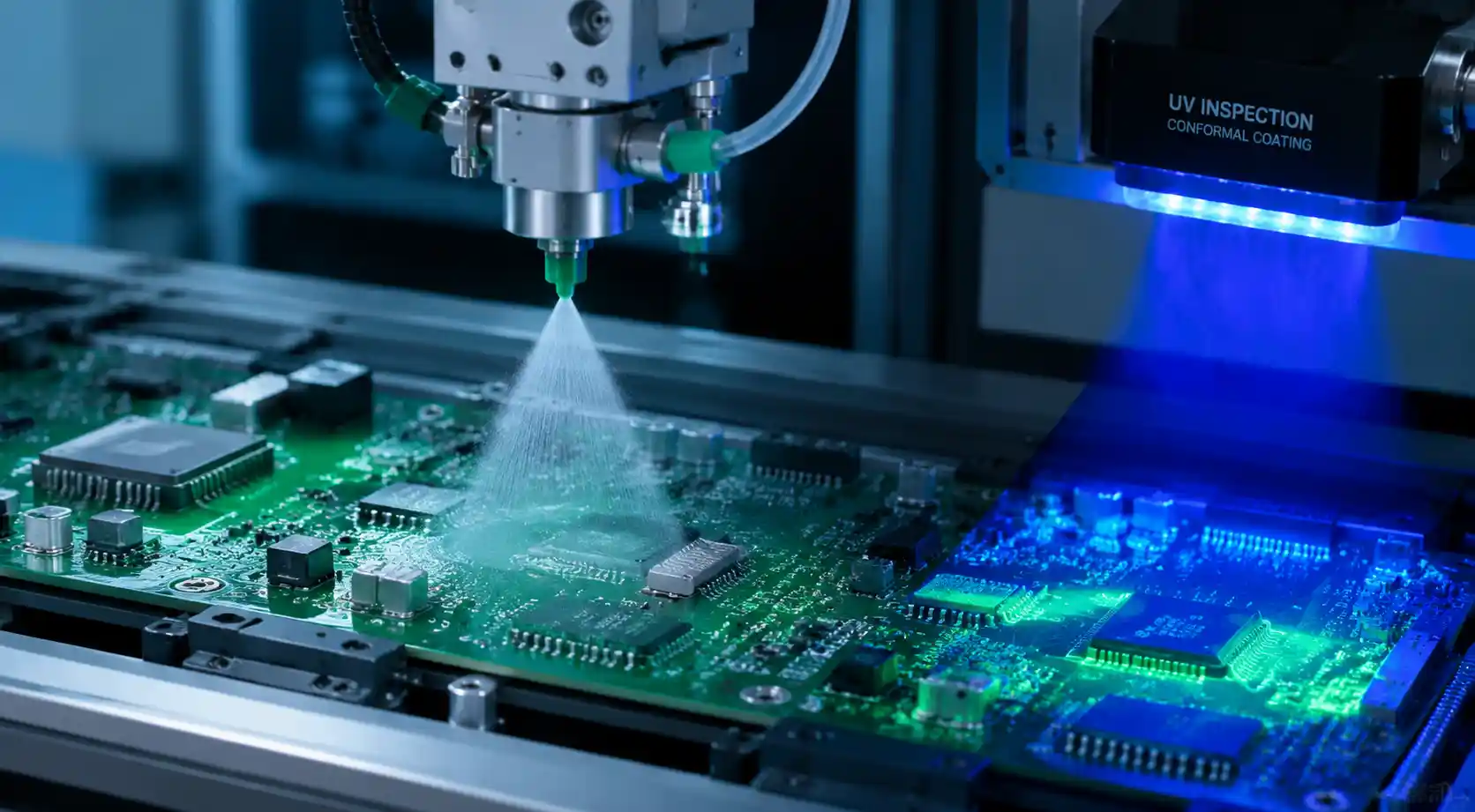

Electronics manufacturers typically achieve 30-50% material cost reduction through spray system optimization. First, upgrade to precision air atomizing nozzles with controlled droplet size distribution minimizing overspray waste in conformal coating operations. Implement robotic spray systems providing repeatable application paths eliminating manual variability and material overages. Optimize spray patterns and application speeds matching material delivery to actual PCB coverage requirements. Install metering systems delivering exact chemical quantities based on board size eliminating waste. Add closed-loop solvent recycling systems filtering and reusing IPA and specialized cleaners reducing consumption by 40-60%. Implement spray-in-air cleaning replacing immersion tanks reducing chemical volume while improving cleaning effectiveness under components. Use selective coating nozzles eliminating masking materials and labor. Install real-time monitoring tracking coating thickness and cleanliness ensuring specifications met without over-processing. Typical annual savings of $75,000-300,000 for medium electronics manufacturers with payback periods of 8-18 months on spray system optimization investments.

Electronics spray nozzle maintenance varies by application. Conformal coating nozzles require daily purging with solvent preventing dried coating buildup in passages, weekly inspection and cleaning of air caps and fluid tips, monthly flow testing verifying atomization quality and material delivery rates, and replacement when spray patterns become irregular affecting coating uniformity. PCB cleaning nozzles need weekly inspection for particulate clogging especially in high-contamination processes, monthly verification of spray patterns and coverage, and quarterly replacement in aggressive chemical environments where PVDF or PFA materials may degrade. Flux spray nozzles require daily cleaning preventing dried flux accumulation, weekly flow calibration ensuring precise application quantities, and replacement when orifices enlarge affecting flux volume. All electronics nozzles require cleanroom handling procedures during maintenance preventing contamination introduction. Quick-disconnect nozzle systems enable replacement without tools during production changeovers. We provide maintenance training, cleanroom-packaged spare parts, and remote support for electronics manufacturers troubleshooting spray-related quality issues.
