Customer pain: Water damage to equipment and property.
Requirement: Fine water mist, quick evaporation.
Fire Protection & Water Mist Nozzles
High-pressure water mist nozzles for fire suppression in tunnels, power plants, marine, and industrial facilities. Eco-friendly, minimal water damage.
Common Fire Protection Challenges & Solutions
Fire Suppression with Minimal Water Damage
Corrosion Resistance in Marine Environments
Customer pain: Saltwater corrosion of fire protection systems.
Requirement: 316SS/316L construction.
High Reliability in Critical Systems
Customer pain: System failure during emergencies.
Requirement: ISO certified, high-cycle testing.
Oil & Gas · Chemical

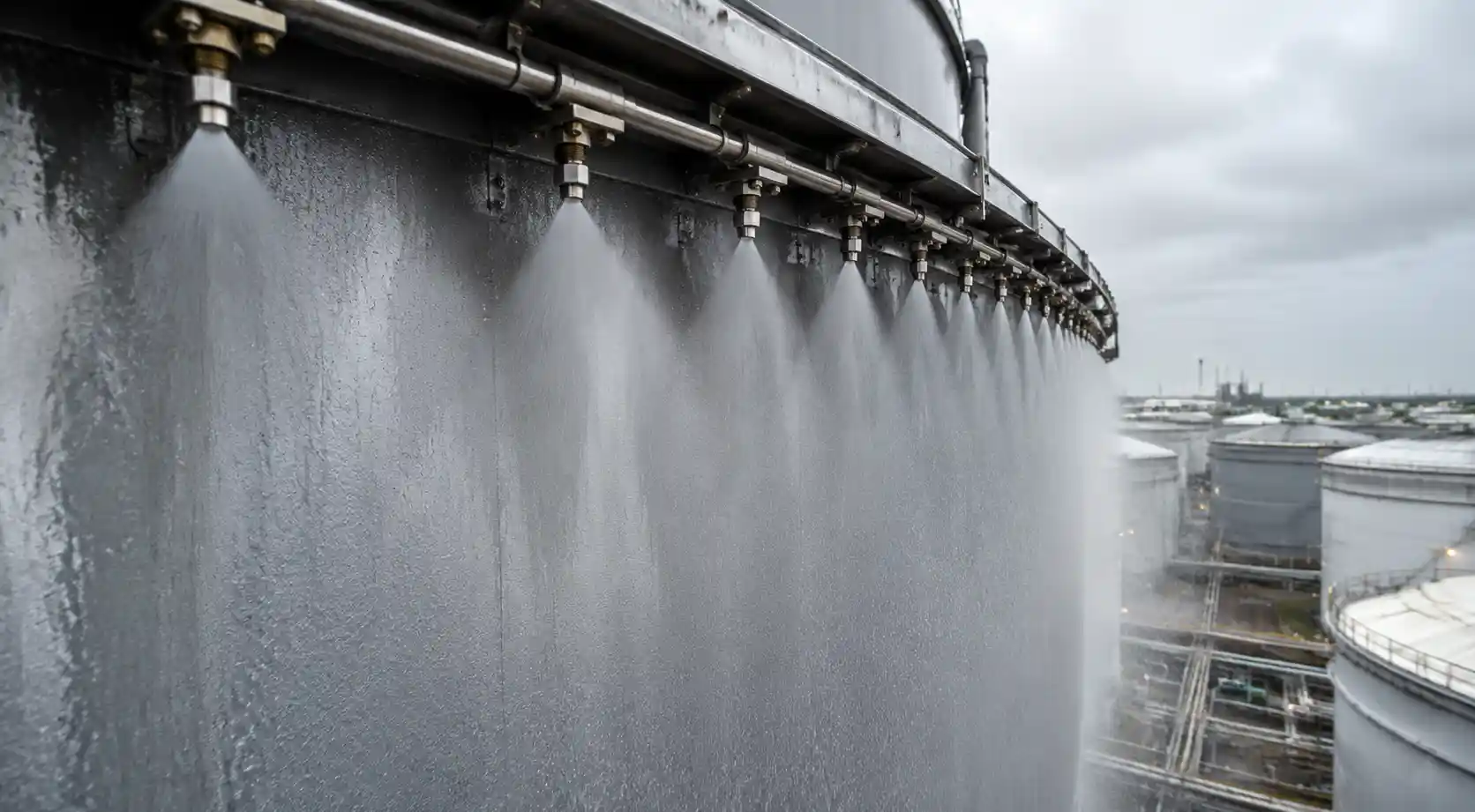

Storage Tank Fire Protection
Water mist fire suppression systems for floating roof and fixed roof storage tanks. Effective fire protection for flammable liquid storage with minimal water requirements.
Associated Industries: · Chemical
Fire Protection Challenges:
- Protecting large diameter tanks with rim seal fires
- Preventing fire spread to adjacent tanks
- Operating in hazardous area classifications
Recommended Products:

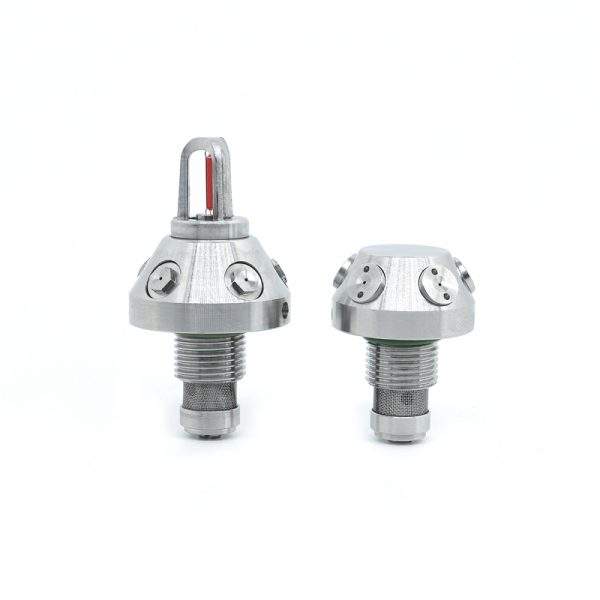

XSWT1.0/10 Water Mist (140) – 120°, 10 MPa, 68° glass bulb

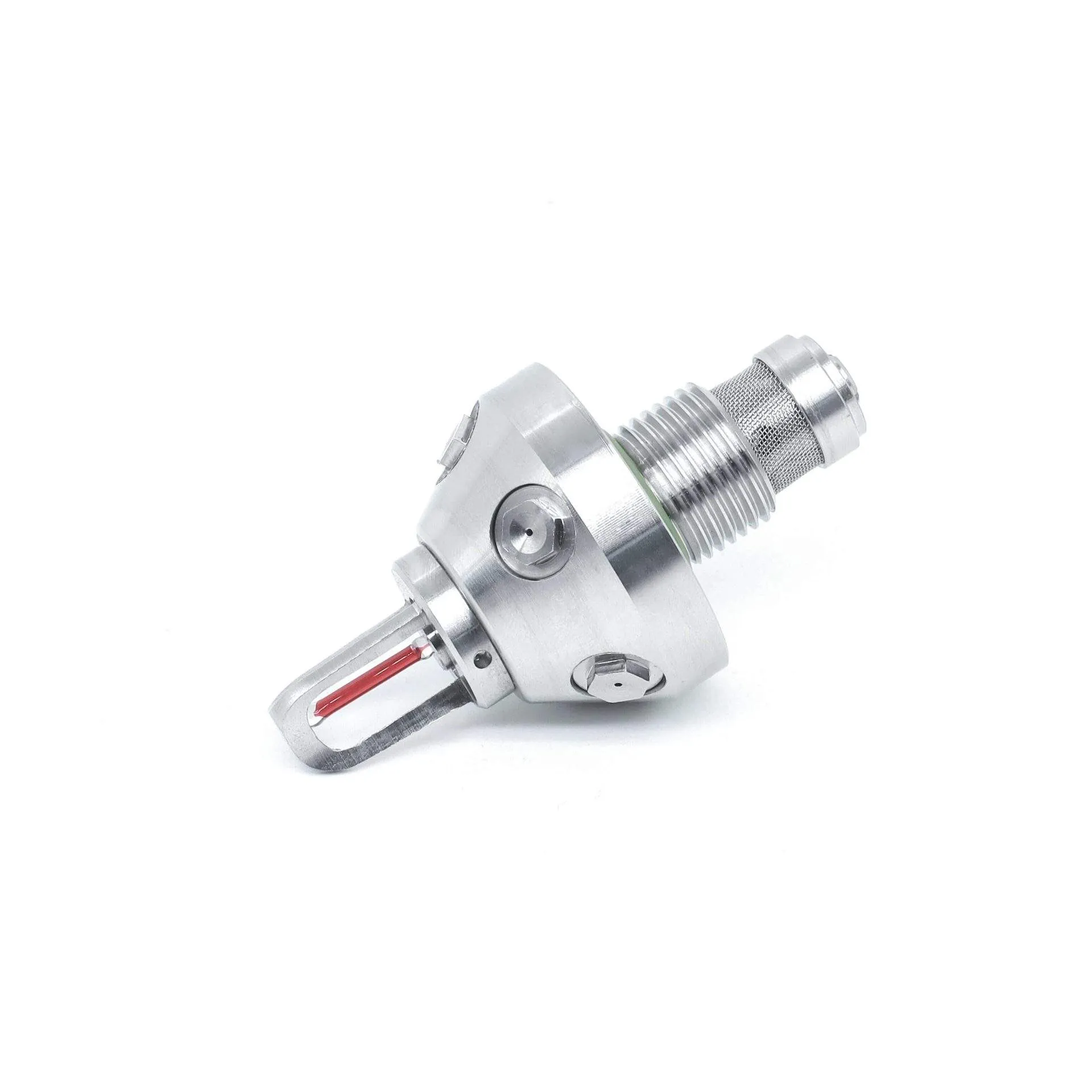

Water Mist Nozzle (142) – 5–21 L/min, ≤100μm droplets

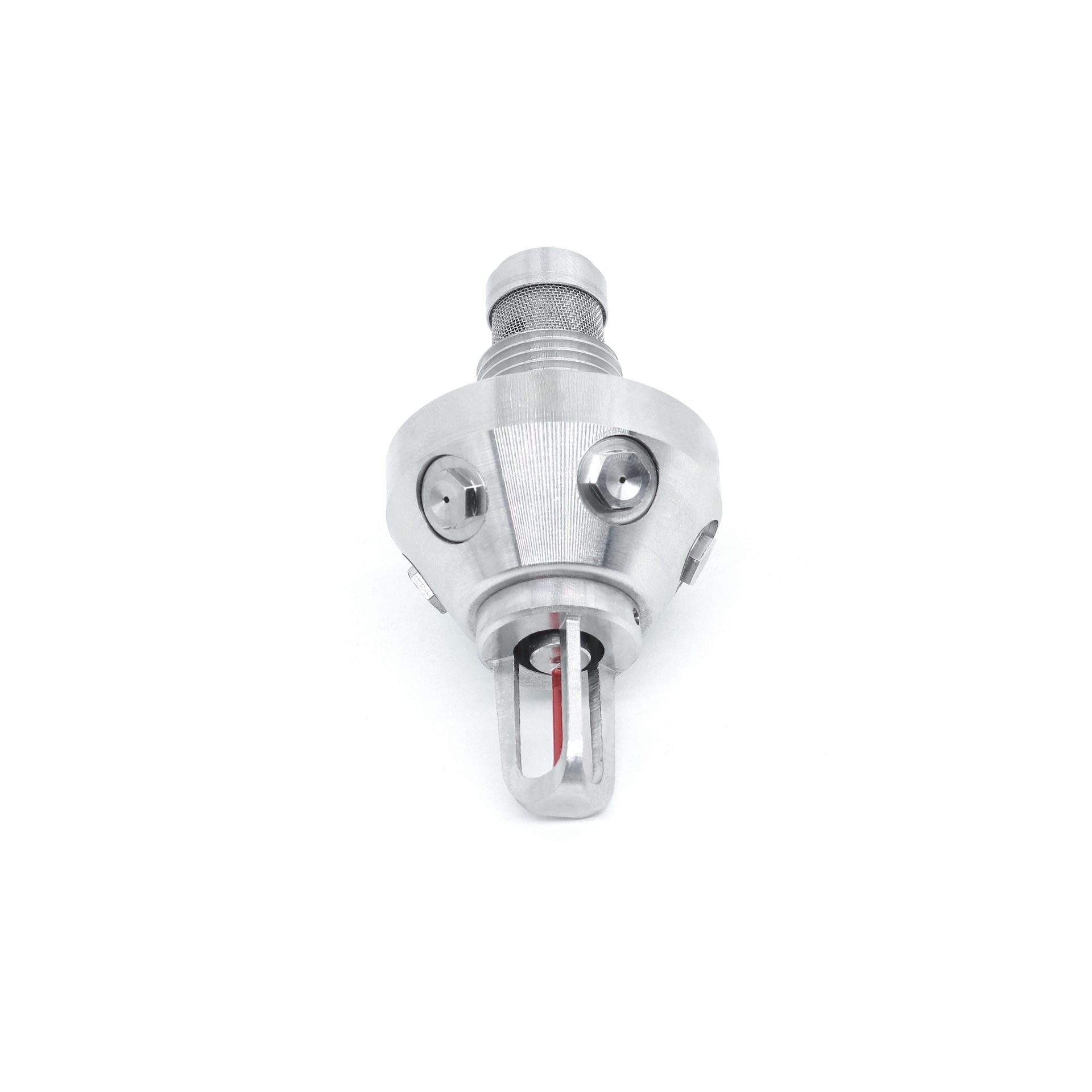

XSWT1.0/10-68° 316SS (143) – K=1.0, 120°, ISO certified
💡 Engineering Tip: For tank rim seal protection, install XSWT1.0/10 (140) along the tank perimeter. Use 316SS construction for coastal installations. Follow NFPA 11 and API 2030 guidelines for system design.
Marine · Offshore

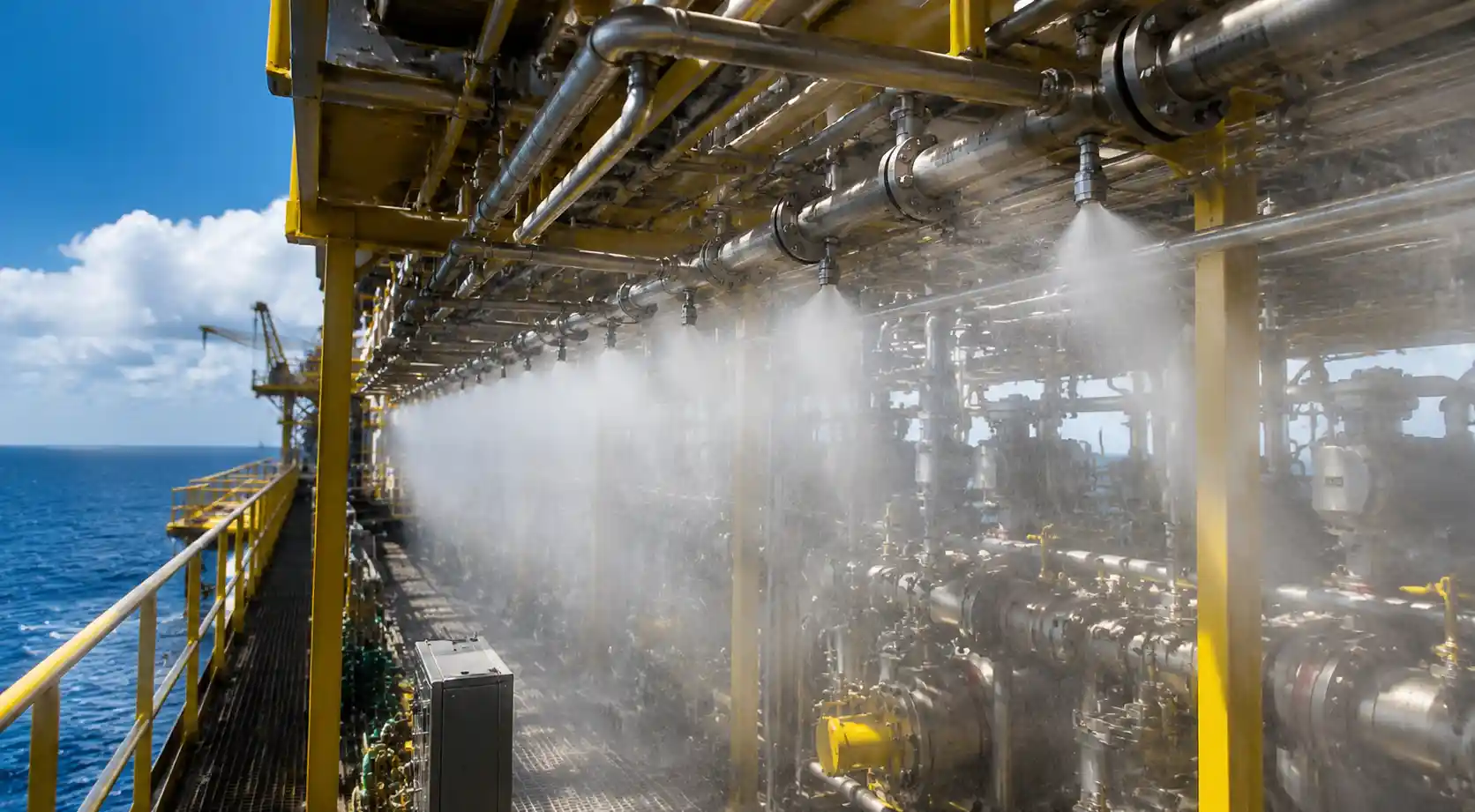

Offshore Oil Platform Fire Protection
High-pressure water mist systems for offshore platforms, FPSOs, and drilling rigs. Compact and lightweight systems provide effective fire protection for lifeboats, helidecks, and process areas.
Fire Protection Challenges:
- Space and weight constraints on offshore installations
- Saltwater corrosion of fire protection equipment
- Rapid fire spread in confined offshore areas
Recommended Products:

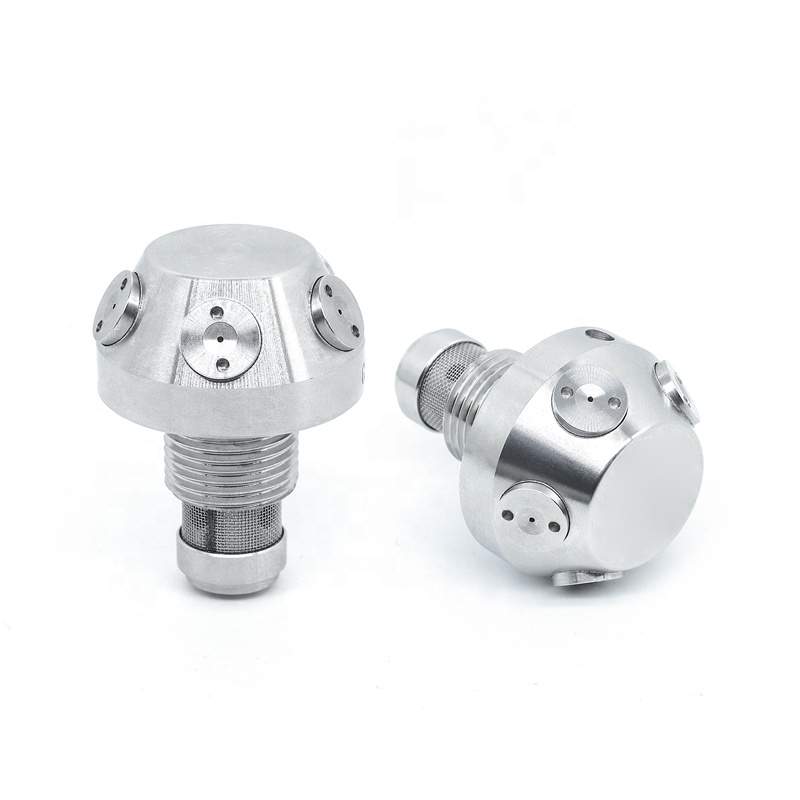

R 316SS Water Mist (141) – K=0.5–2.1, ≤100μm
XSWT1.0/10-68° 316SS (143) – ISO9001/ISO14001 certified
Water Mist Nozzle (142) – 10 bar, JOB glass ball
💡 Engineering Tip: For offshore applications, use R 316SS (141) with 316L construction for corrosion resistance. Install in process areas and accommodation modules. Follow SOLAS and NORSOK standards for offshore fire protection.
Power · Energy

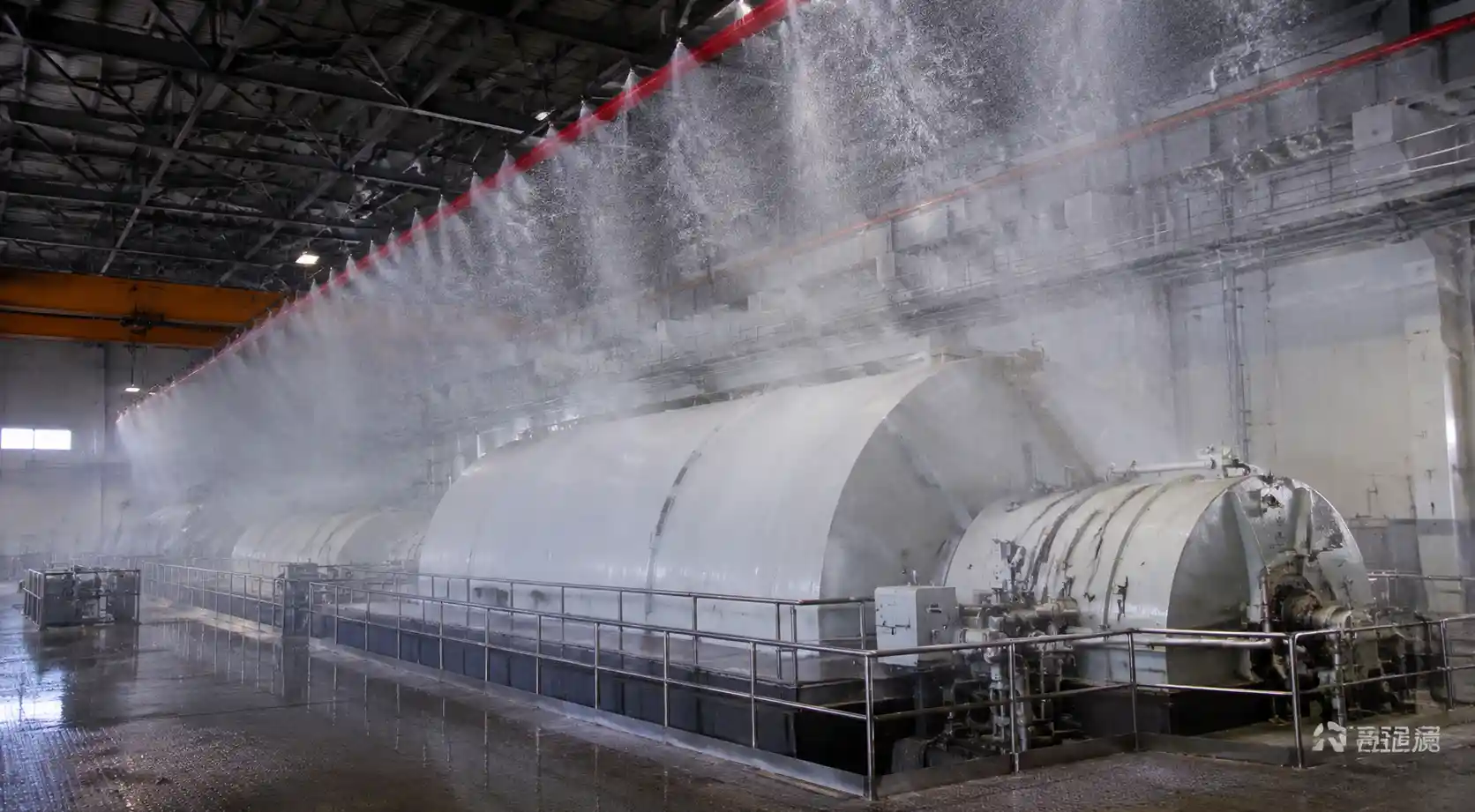

Power Plant Fire Protection
Water mist systems for turbine halls, cable tunnels, and transformer areas in power plants. Protecting critical infrastructure from fire damage while minimizing water damage to sensitive equipment.
Fire Protection Challenges:
- Protecting high-value turbine and generator equipment
- Fire risks from oil leaks and electrical faults
- Operating in high-temperature turbine environments
Recommended Products:
XSWT1.0/10 Water Mist (140) – 120°, 10 MPa, 68°
Water Mist Nozzle (142) – 5–21 L/min, ≤100μm
R 316SS Water Mist (141) – K=0.5–2.1, ≤100μm
💡 Engineering Tip: For turbine halls, use XSWT1.0/10 (140) with 68°C glass bulbs. For cable tunnels, use Water Mist (142) with fine atomization for electrical fire protection. Follow NFPA 850 for power plant fire protection.
Mining · Material Handling

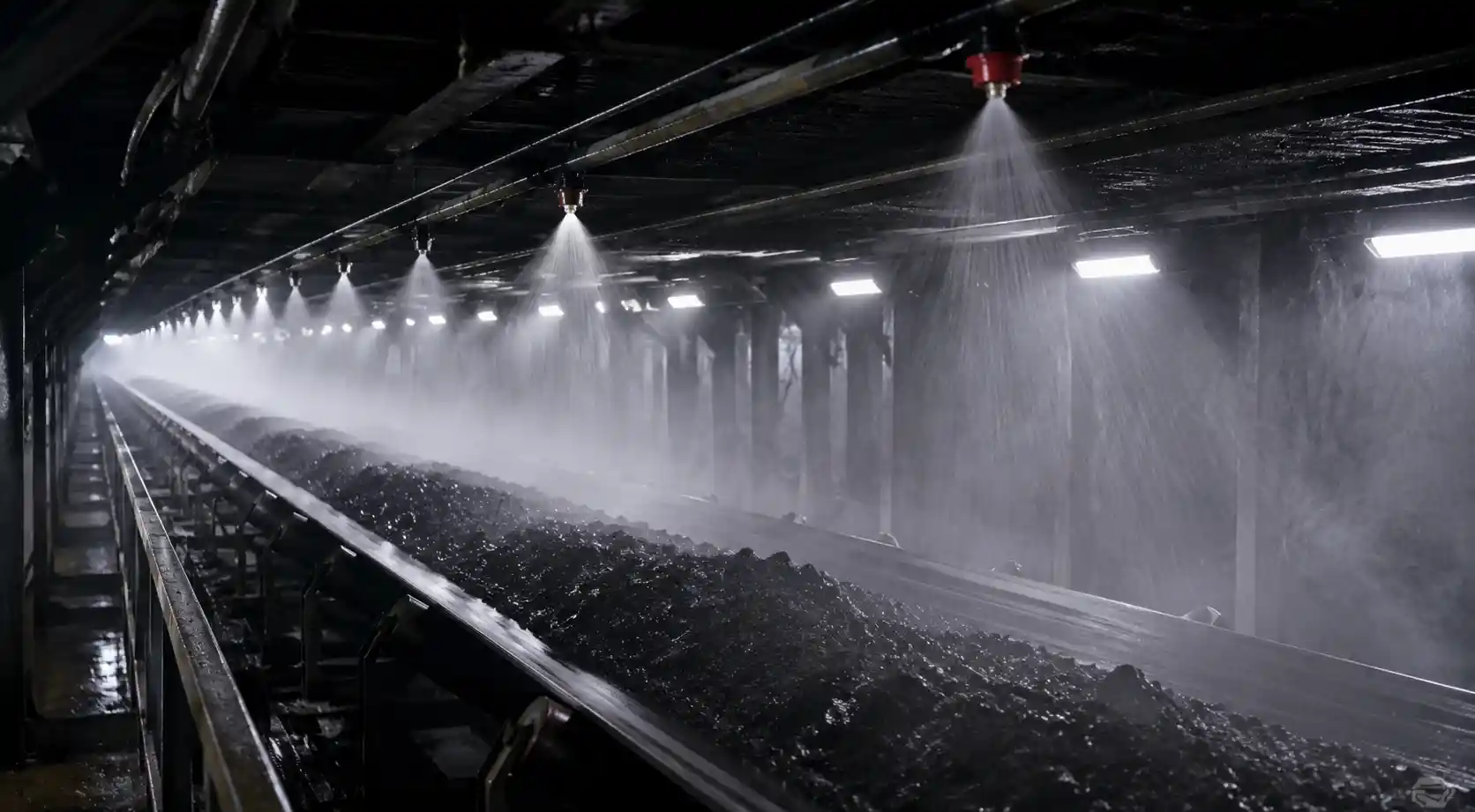

Conveyor Belt Fire Protection
Water mist and deluge systems for conveyor belts in mining, power plants, and bulk handling. Conveyor fires can spread rapidly through enclosed galleries and tunnels.
Associated Industries: Mining
Fire Protection Challenges:
- Protecting long conveyor galleries with limited access
- Fire risk from belt friction and material ignition
- Dust accumulation increasing fire load
Recommended Products:
XSWT1.0/10 Water Mist (140) – 120°, 10 MPa, 68°
XSWT1.0/10-68° 316SS (143) – K=1.0, 120°, ISO certified
Water Mist Nozzle (142) – 5–21 L/min, ≤100μm
💡 Engineering Tip: For conveyor belt fire protection, use XSWT1.0/10 (140) at 2-3m intervals along the gallery. Install heat detectors and automatic activation systems. Follow NFPA 120 for conveyor fire protection.
Industrial · Warehouse

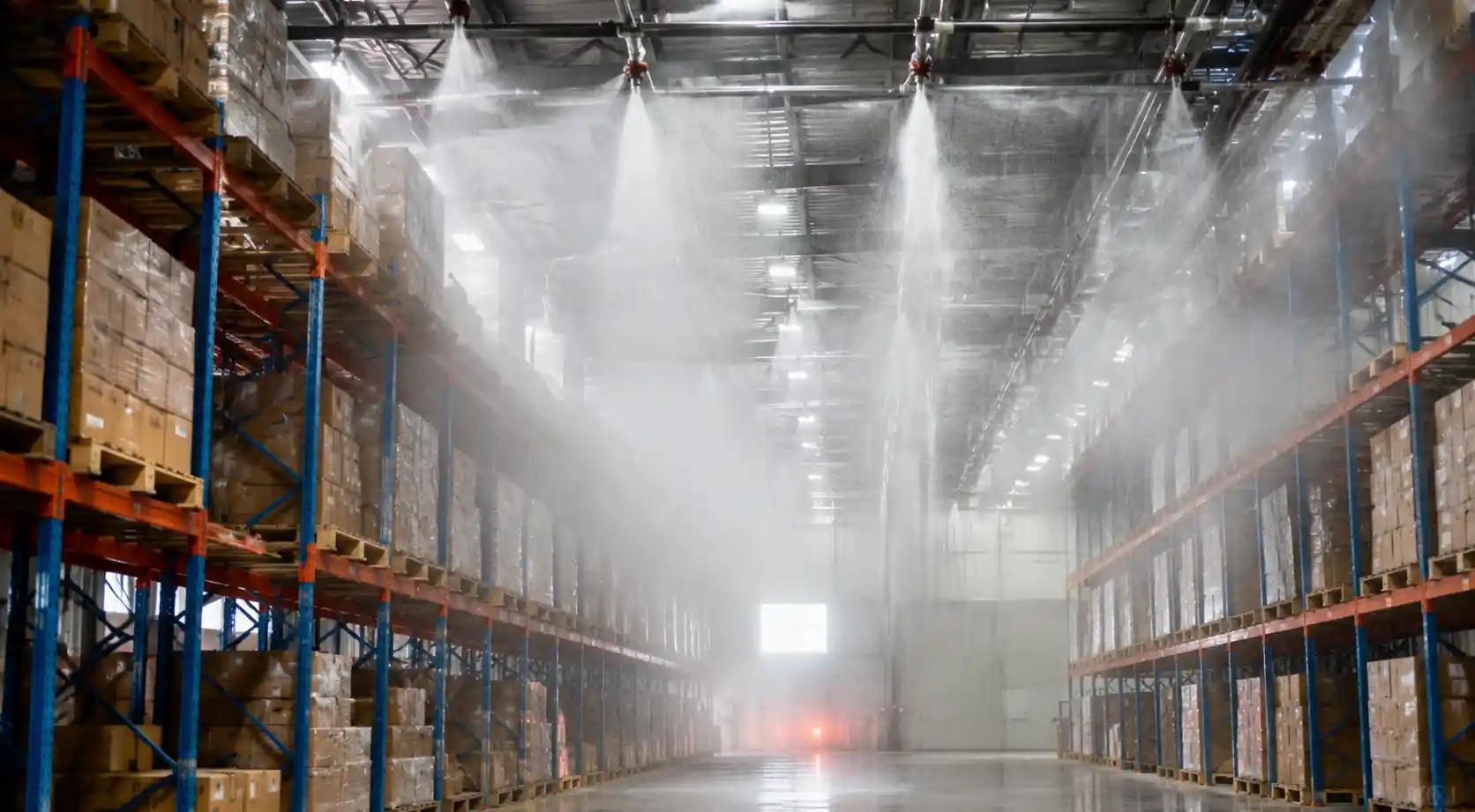

Industrial Fire Suppression Spray
General industrial fire protection for warehouses, manufacturing facilities, and hazardous areas. Water mist systems provide effective protection with minimal water damage.
Fire Protection Challenges:
- Protecting large open spaces with rack storage
- Protecting high-value manufacturing equipment
- Minimizing production downtime after activation
Recommended Products:
XSWT1.0/10 Water Mist (140) – 120°, 10 MPa, 68°
Water Mist Nozzle (142) – 5–21 L/min, ≤100μm
R 316SS Water Mist (141) – K=0.5–2.1, ≤100μm
💡 Engineering Tip: For industrial fire protection, consider temperature ratings (68°C, 79°C, 93°C glass bulbs) based on the environment. Consult NFPA 13 and 750 standards for system design. Regular testing ensures reliable operation.
Select Your Industry for Tailored Recommendations
Explore fire protection nozzle solutions specific to your sector
Frequently Asked Questions
What is the operating pressure for water mist fire nozzles?
High‑pressure systems operate at 10–20 MPa (100–200 bar). Low‑pressure systems work at 1–3 MPa. CYCO's XSWT series is rated at 10 MPa.
What glass bulb temperature ratings are available?
Standard ratings: 68°C, 79°C, 93°C, 141°C. Choose based on ambient temperature and hazard classification.
Are water mist nozzles suitable for electrical fires?
Yes, water mist is non‑conductive when droplet size is below 100μm. It is effective for electrical hazards with proper spacing.
How do I maintain fire nozzles?
Conduct annual inspections per NFPA 25. Test flow rates, check for corrosion, and replace glass bulbs if damaged or expired.
What is the recommended spacing for water mist nozzles?
Spacing depends on the hazard class and ceiling height. Typically 3–4 meters for standard industrial applications. Consult CYCO engineering for hydraulic calculations.
Can I retrofit water mist into existing sprinkler systems?
Yes, but requires proper hydraulic analysis. Water mist operates at higher pressures, so existing piping may need upgrading. Consult our engineers for feasibility studies.
