Chemical Processing Spray Nozzles Manufacturer

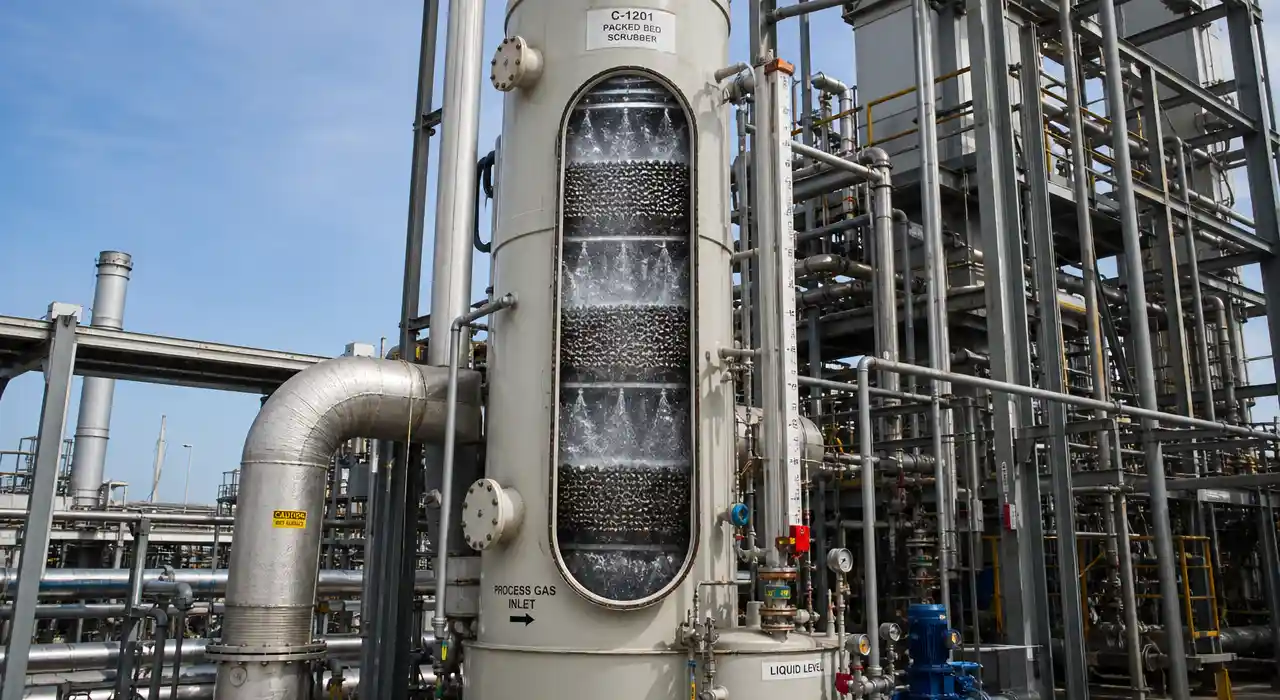

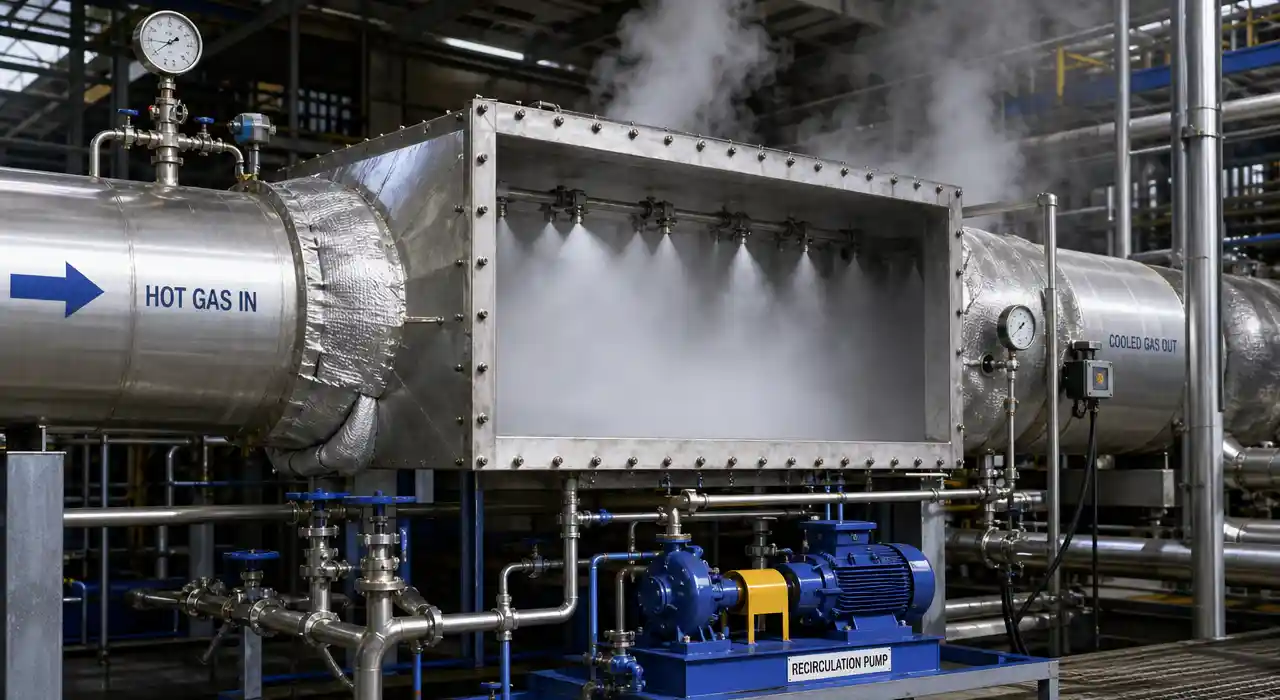

Chemical processing uses specialized nozzles engineered for corrosive environments and safety-critical applications. Reactor quenching requires full cone nozzles distributing coolant uniformly throughout reactor volumes with Hastelloy or PTFE construction resisting hot acids or bases. Gas scrubbing systems employ hollow cone or spiral nozzles creating fine droplets for maximum gas-liquid contact with PVDF or PTFE materials for acidic or caustic service. Tank cleaning uses high-impact rotating nozzles removing residues from large vessel interiors with 316SS or specialized alloy construction. Evaporative cooling requires fine mist nozzles producing 100-500 micron droplets for efficient heat transfer. Absorption towers use distribution nozzles with wide spray angles ensuring complete packing coverage. All chemical nozzles must provide chemical compatibility validated through testing, pressure ratings meeting process conditions (typically 5-50 bar), temperature capability for hot process streams, and hazardous area certification for flammable atmospheres where required.

Yes, we specialize in spray nozzles engineered for the most aggressive chemical environments. Our nozzles feature PTFE construction offering universal resistance to concentrated acids (98% H2SO4, 37% HCl, 70% HNO3), strong bases (50% NaOH, NH4OH), chlorinated solvents, and reactive chemicals with temperature capability to 260°C. Hastelloy C-276 nickel alloy provides superior resistance to hot acids, chloride-containing solutions, and oxidizing/reducing environments where fluoropolymers are unsuitable. Silicon carbide delivers extreme chemical resistance combined with hardness for abrasive chemical slurries. PFA offers similar resistance to PTFE with improved mechanical strength and transparency. We provide comprehensive chemical compatibility documentation including immersion testing results, material selection guides for specific chemicals and operating conditions, pressure and temperature ratings, and case studies from similar applications. Engineering consultation services include material validation testing for unusual chemical mixtures or operating conditions ensuring long service life and safety.

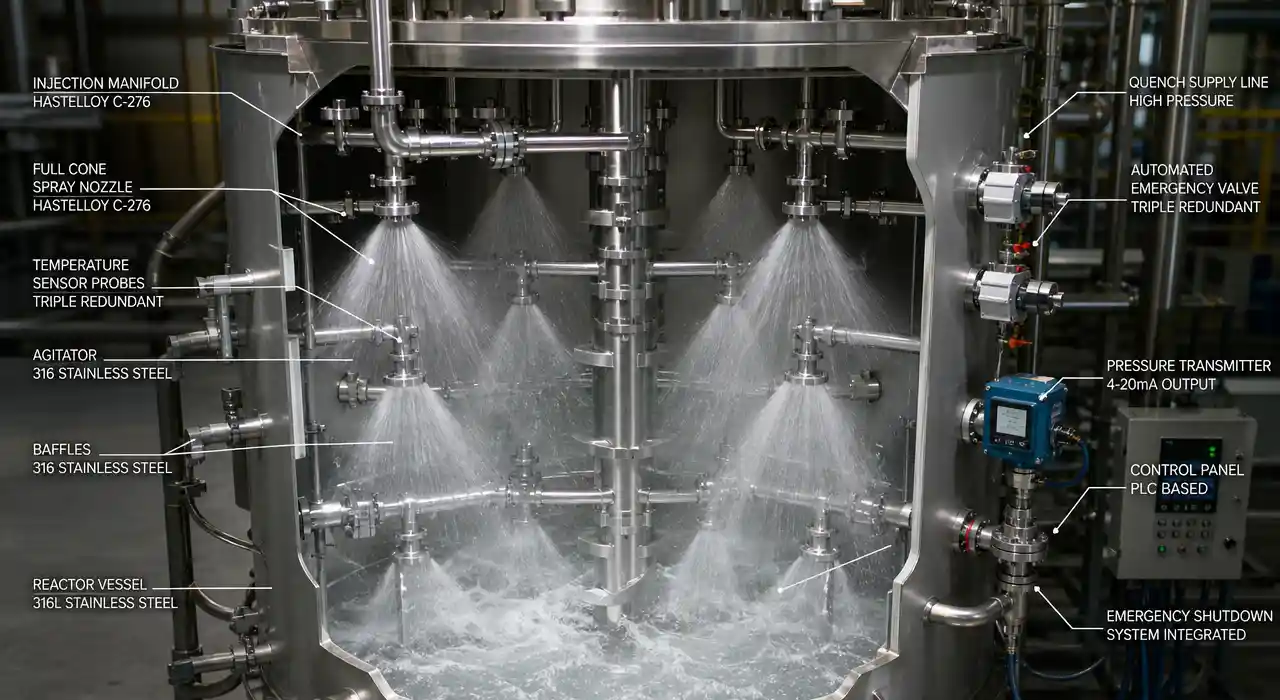

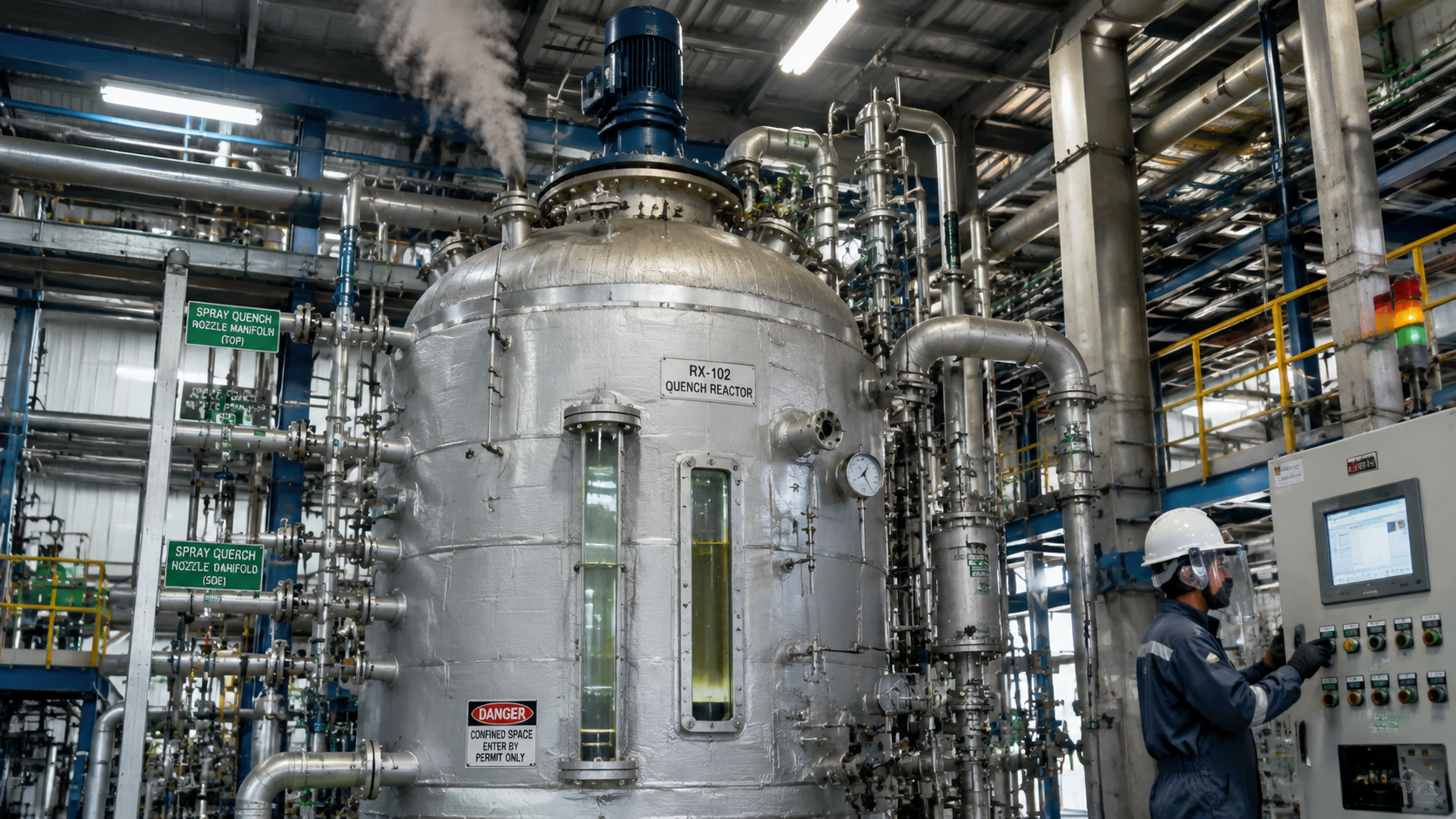

Reactor emergency quench systems require high-reliability nozzles designed for fail-safe operation during critical upset conditions. We recommend full cone nozzles providing rapid uniform liquid distribution throughout reactor volumes with flow capacities of 50-500 L/min per nozzle for fast temperature reduction. Material selection depends on reactor chemistry with Hastelloy C-276 for acidic processes, 316L stainless steel for general organic chemistry, and PTFE for maximum chemical resistance at lower temperatures. Multi-point injection arrays position nozzles at multiple elevations ensuring complete mixing and heat removal in large reactors. Wide spray angles (90-120°) maximize coverage volume. Quick-opening automated valves provide activation within 2-5 seconds from trigger signal. Redundant nozzle circuits ensure functionality if single nozzles clog. Integration with triple-redundant temperature monitoring, pressure relief coordination, and control system interlocks provides comprehensive safety system. We provide engineering services including CFD modeling validating mixing and cooling effectiveness, heat transfer calculations verifying adequate capacity, and functional safety design meeting IEC 61511 SIL requirements.

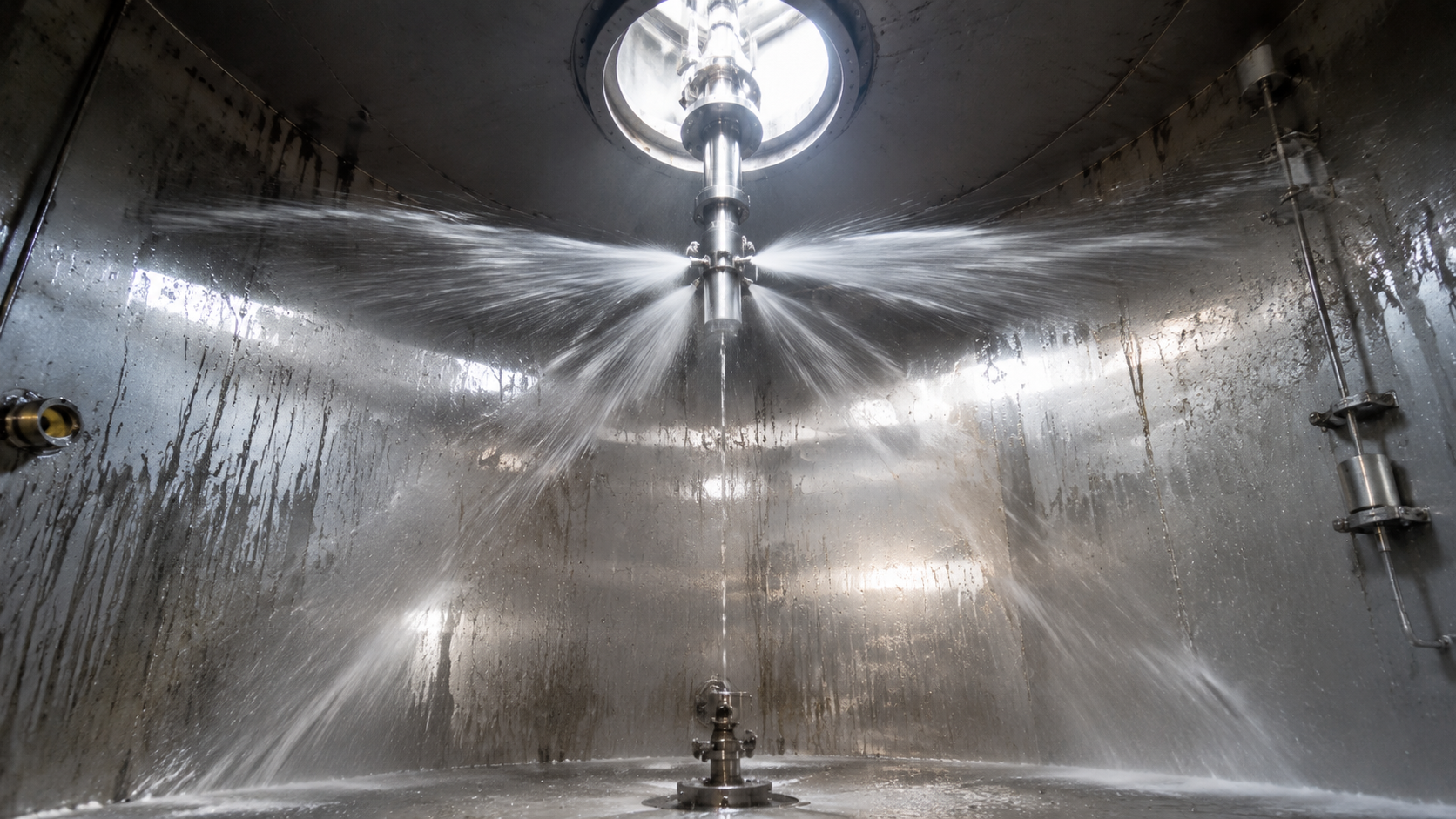

Yes, we provide replacement spray nozzles for chemical processing equipment from all manufacturers. Our engineering team conducts on-site assessments evaluating current system performance including chemical compatibility issues, corrosion or wear problems, spray pattern degradation, and flow rate changes indicating wear. We document existing nozzle specifications including materials, connections, orifices, and spray angles. We offer direct replacements maintaining existing interfaces while upgrading to superior corrosion resistance, improved spray patterns, or extended service life. For gas scrubber retrofits, we provide optimized distribution nozzles improving removal efficiency while reducing pressure drop and liquid consumption. Tank cleaning upgrades replace manual entry methods with automated rotating nozzles reducing cleaning time and eliminating confined space safety concerns. Most chemical plant nozzle retrofits achieve payback within 12-24 months through extended nozzle life, reduced maintenance labor, improved process efficiency, and enhanced safety. Installation services include material compatibility validation, hazardous area work permits and procedures, and commissioning documentation for plant change management systems.

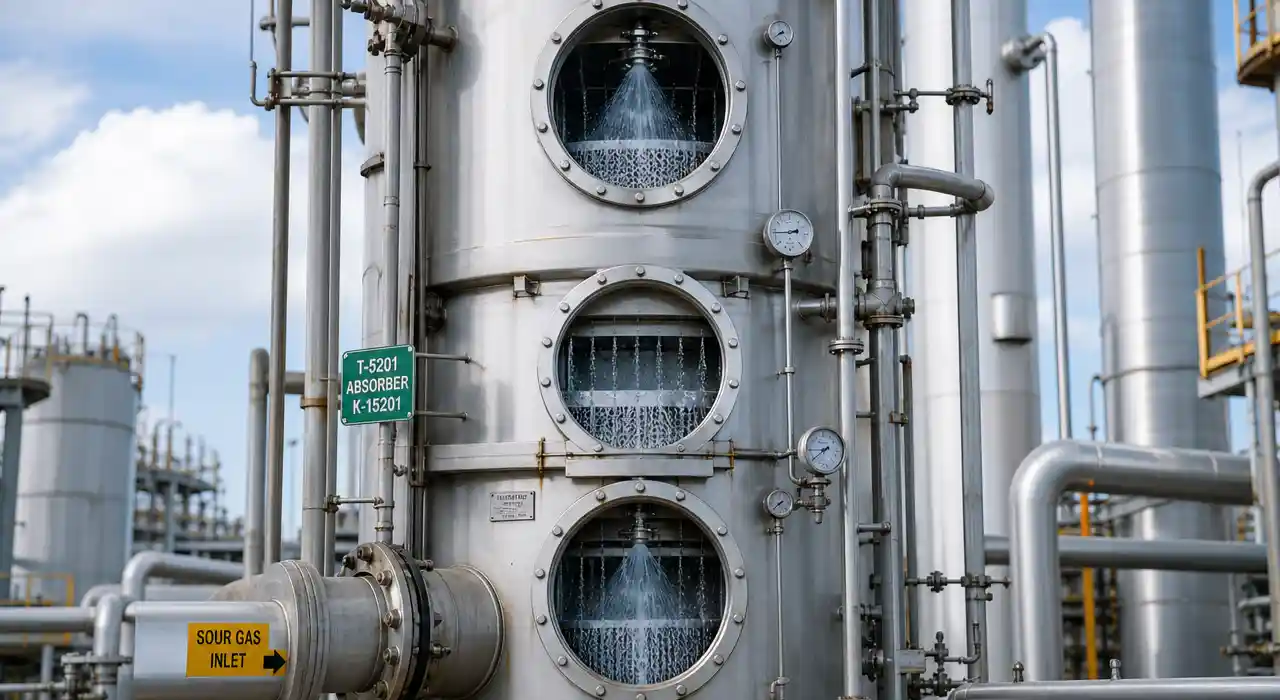

Chemical plants achieve 20-40% scrubbing efficiency improvement through spray system optimization. First, upgrade to optimized nozzle types with tangential spiral designs providing rotational momentum for complete packing wetting versus simple full cone patterns. Increase liquid distribution uniformity across tower cross-section preventing channeling and dead zones that allow gas bypass. Optimize droplet size with 500-2000 micron range maximizing surface area for mass transfer without excessive pressure drop or drift losses. Position nozzles at correct spacing (typically 1-3 meters) providing overlapping coverage without interference between spray cones. Upgrade to corrosion-resistant materials including PVDF or PTFE eliminating scale buildup and clogging from corroded metal nozzles. Add liquid redistribution trays at multiple elevations maintaining uniform distribution throughout packed height. Install nozzle inspection ports enabling performance verification without tower shutdown. Implement automated monitoring measuring pressure drop, liquid flow, and outlet emissions detecting degraded performance. Typical improvements include pollutant removal increasing from 90-95% to 97-99%, recirculation pump power reduction of 10-20% through lower pressure drop nozzles, and maintenance frequency reduction through clog-resistant designs.

Chemical processing spray nozzle maintenance varies by application and chemical environment. Reactor quench nozzles require quarterly inspection for chemical corrosion, scale buildup, or material degradation with immediate replacement if spray patterns deteriorate or orifices enlarge beyond 10% affecting flow capacity during emergencies. Gas scrubber nozzles need monthly inspection for clogging from scale or particulates, quarterly spray pattern verification ensuring uniform distribution, and annual replacement in severely corrosive service (concentrated acids or high-temperature applications). Tank cleaning nozzles require inspection after every 50-100 cleaning cycles checking for wear, bearing condition in rotating units, and spray pattern quality. Chemical storage tank nozzles operating in static service typically require only annual visual inspection unless aggressive chemicals accelerate degradation. All chemical nozzle maintenance requires appropriate PPE including chemical-resistant gloves and face shields, lockout- tagout procedures isolating spray systems from pressure and chemical sources, and proper disposal of corroded or chemically- contaminated components. Quick-disconnect fittings enable nozzle replacement without extensive system disassembly minimizing downtime. We provide maintenance training specific to chemical plant safety requirements, spare parts programs with expedited delivery for critical applications, and emergency technical support for process incidents involving spray system failures.
